4T, 5.3 m Four Post Vehicle Lift – Shallow Recess
The B443-530 combines the benefits of our new narrower 4 post lift design – overall width of just 2.79m and a shallow recess requirement of only 130mm – with a longer platform length of 5.3m.
This makes it ideal for ‘Grandfather Rights’ MOT stations and garages operating in small railway arches where the width of the premises is restricted but there is sufficient space for a longer platform.
Despite the more compact design, this Class 4 MOT lift still benefits from Boston’s 630mm wide platforms. When compared to other lifts of similar size this represents a significant increase of 70mm per platform which means it easily accommodates the track width of larger vehicles.

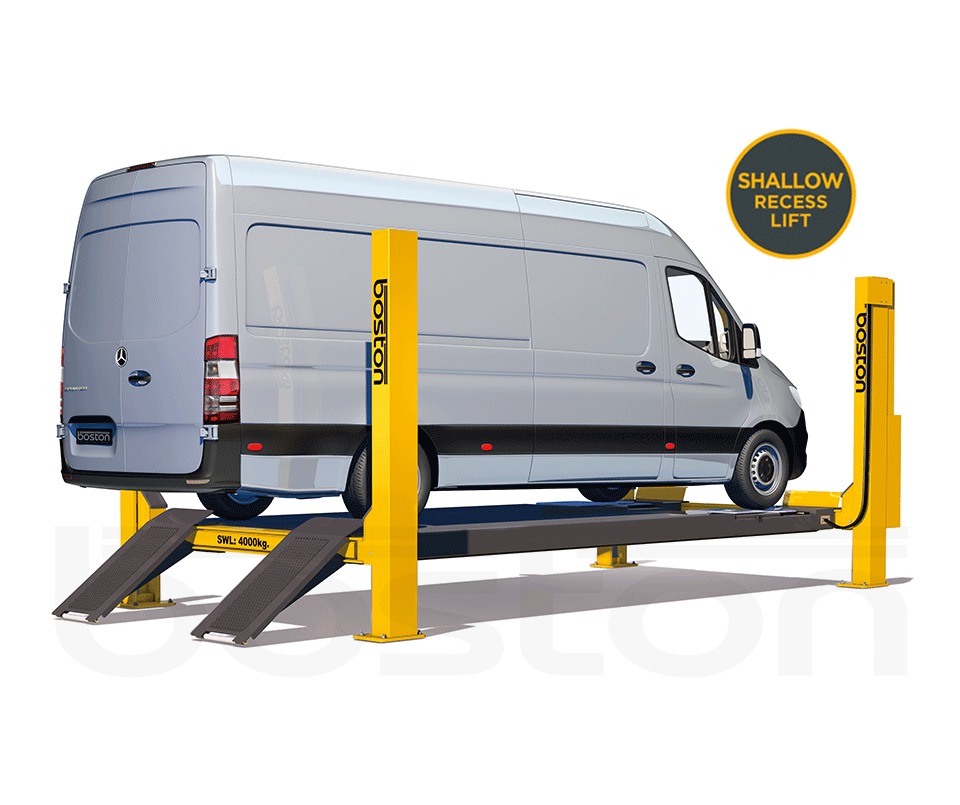

Cleverly designed and positioned built-in play detectors and turning plates also enable testing of longer wheelbase vehicles than possible on other lifts of similar size. For example, the B443-530 can comfortably handle a LWB Mercedes Sprinter.
These features together with greater width between posts, increased range of space between platforms, and greater width across the outside edges of the platforms, ensure safer testing of modern wider vehicles.
A wide range of compatible accessories are available including our unique Any Post Control (APC), LED lighting kits, ruggedised torch control and high-quality jacking beams.
- Class 4 MOT lift
- New narrow, compact design
- Overall width of just 2.79m
- Shallow recess of just 130mm (often compatible with existing groundwork)
- Wide 630mm platforms provide safer testing of wider vehicles
- Reinforced drive-up ramps / drive-over plates
- Drive-through or reverse-off configurations
- Heavy duty, high quality platforms & reinforced substructure
- Hydraulics & motor on front column for minimum lift width
- Safety ladder-racks on all posts
- Lock release solenoids mounted internal of the crossbeam to avoid potential damage
- Cross beam pulley covers
- Impact resistant ruggedised play detector torch control (if fitted)
- 24V APC / inspection lamp outlets at each corner
- Air outlets at control post or between platforms (if connected)
- Wide range of optional extras (See ‘Tech spec’ tab)
Specifications:
UK MOT Approval Class 4
Power Supply 3PH / 415VAC – 3.0kW
Operation Electro-hydraulic
Control Push-button control panel with single button descent operation, emergency stop and main power switch
Installation Surface mount or recessed configuration
Platform Width & Length 630mm / 5.30m
Lifting Height 1.82m

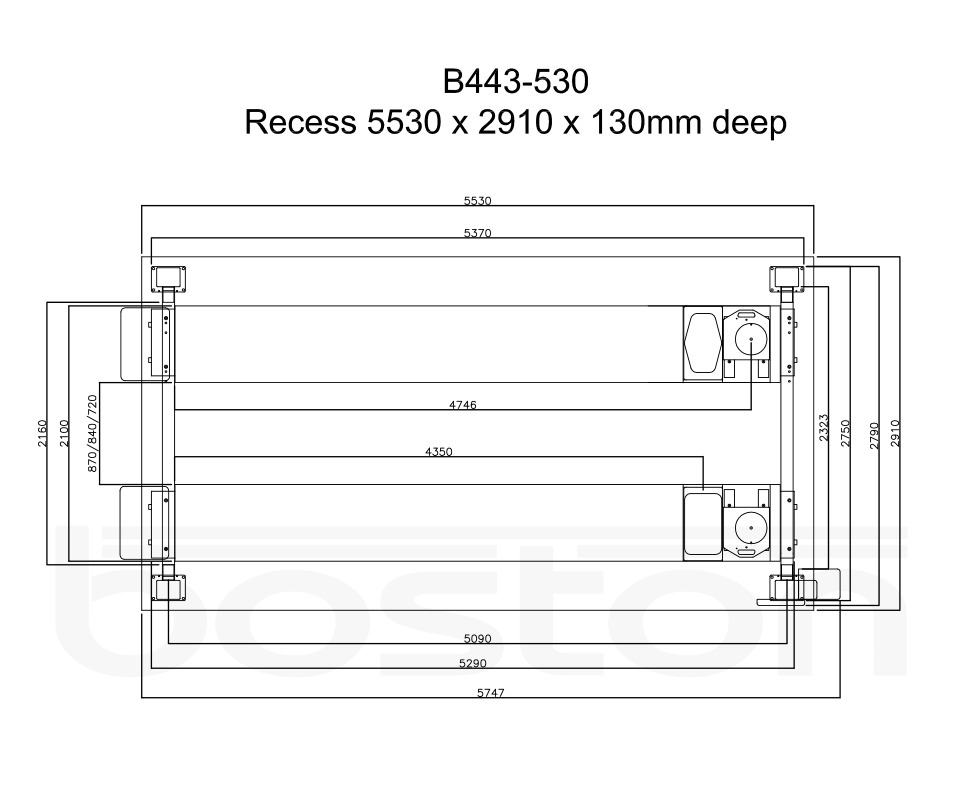

Max Height, Length & Width 2.37m / 5.75m / 2.79m
Max Lifting Capacity 4 Tonne
Lock Release Mechanism Electric solenoids (no air required)
Air Outlets At control post or between platforms (if connected)
Optional Extras & Accessories:
Play Detectors PD303-S hydraulic integrated twin-plate play detectors with dual controls on lift keypad and remote torch
Turning Plates Recessed with nylon runners (no metal-on-metal contact with platform)
Any Post Control (APC) Separate magnetic lift control keypad can be placed on any other post for flexible operation
Wireless Torch For easier vehicle inspection and play detector operation
LED Lighting Kit LED strips for complete vehicle underside illumination
Single Phase Supply Factory option available from mid-2020
Jacking Beams Compatible with our range of jacking beams up to 2.6 Tonnes (manual or pneumatic)
OEM Customisation Our full range can be supplied to meet any specification and corporate colour scheme
