Trojan Maxima Premium Wireless Heavy-Duty Mobile Column Lift 7.5T per column
2 Year Warranty *
Also available in Sets of 4, 6, 8 and up to 32, please ask for pricing

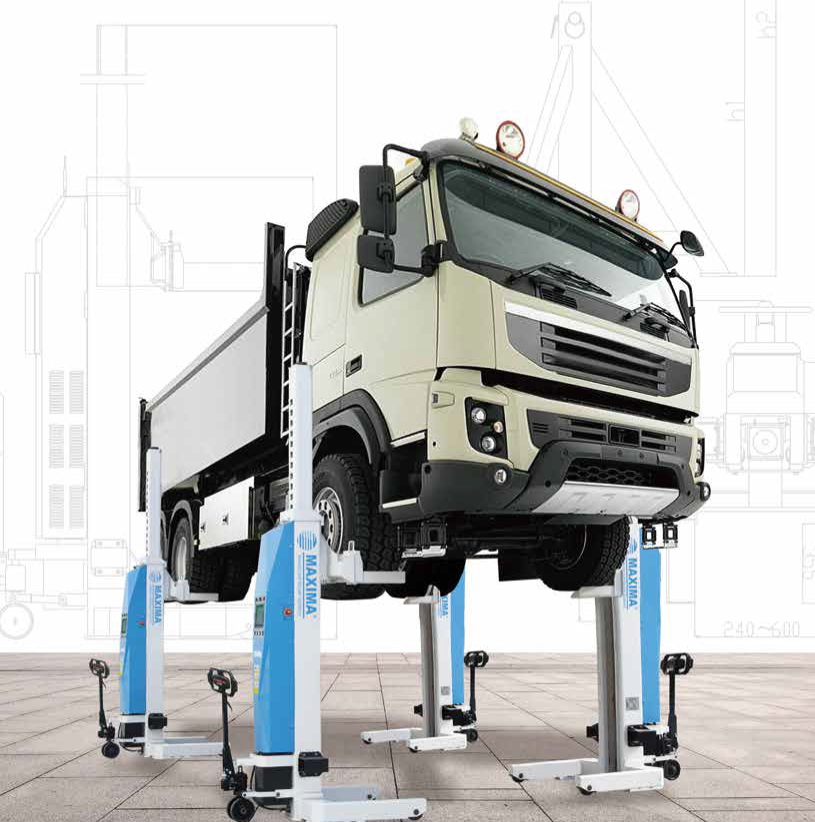

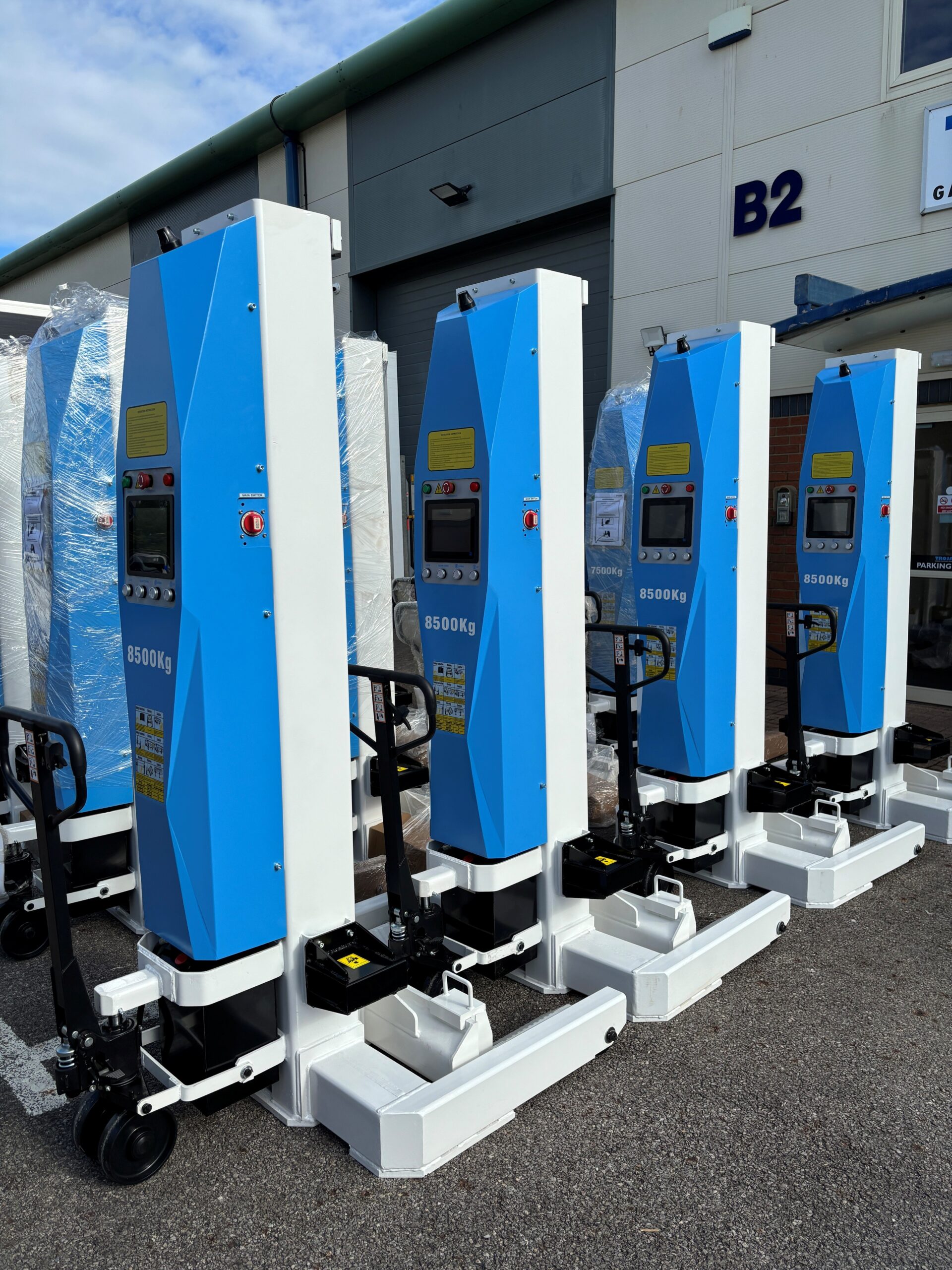

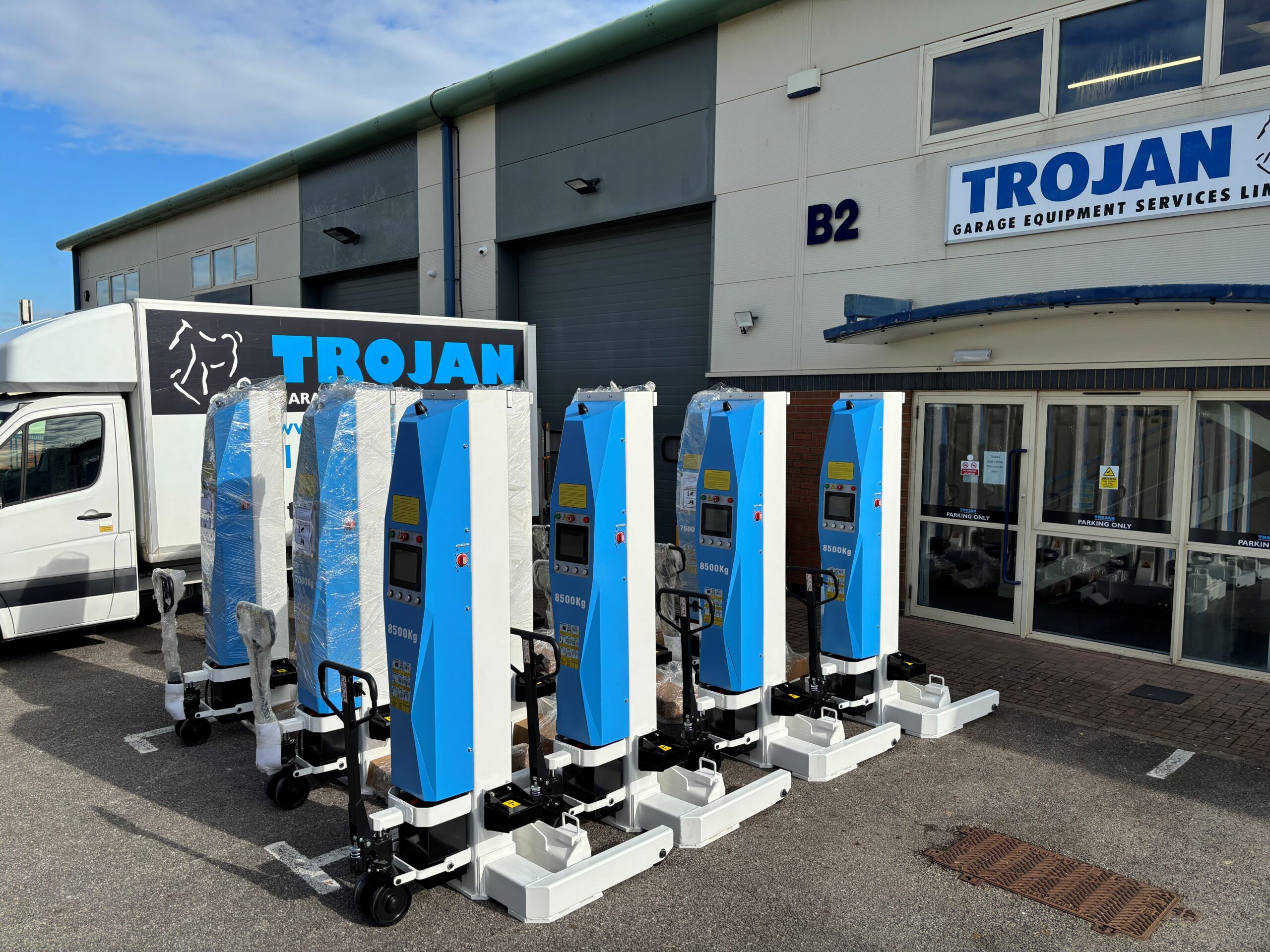

Wireless Heavy Duty Column Lift, Bus Lifts and HGV
Features
Advanced welding robot ensures uniform welding strength and high quality
Automatic trouble shooting and debugging
Assembled with both hydraulic support and mechanical lock
ZigBee transmission signal ensures stable signal and real time monitoring
Limit switches ensure auto stop when limit is reached
High capacity: single column passes 1.5 x safety load test
Over load protection
High Efficiency
Easy movement of columns
Maximum of 2 columns can work as one set

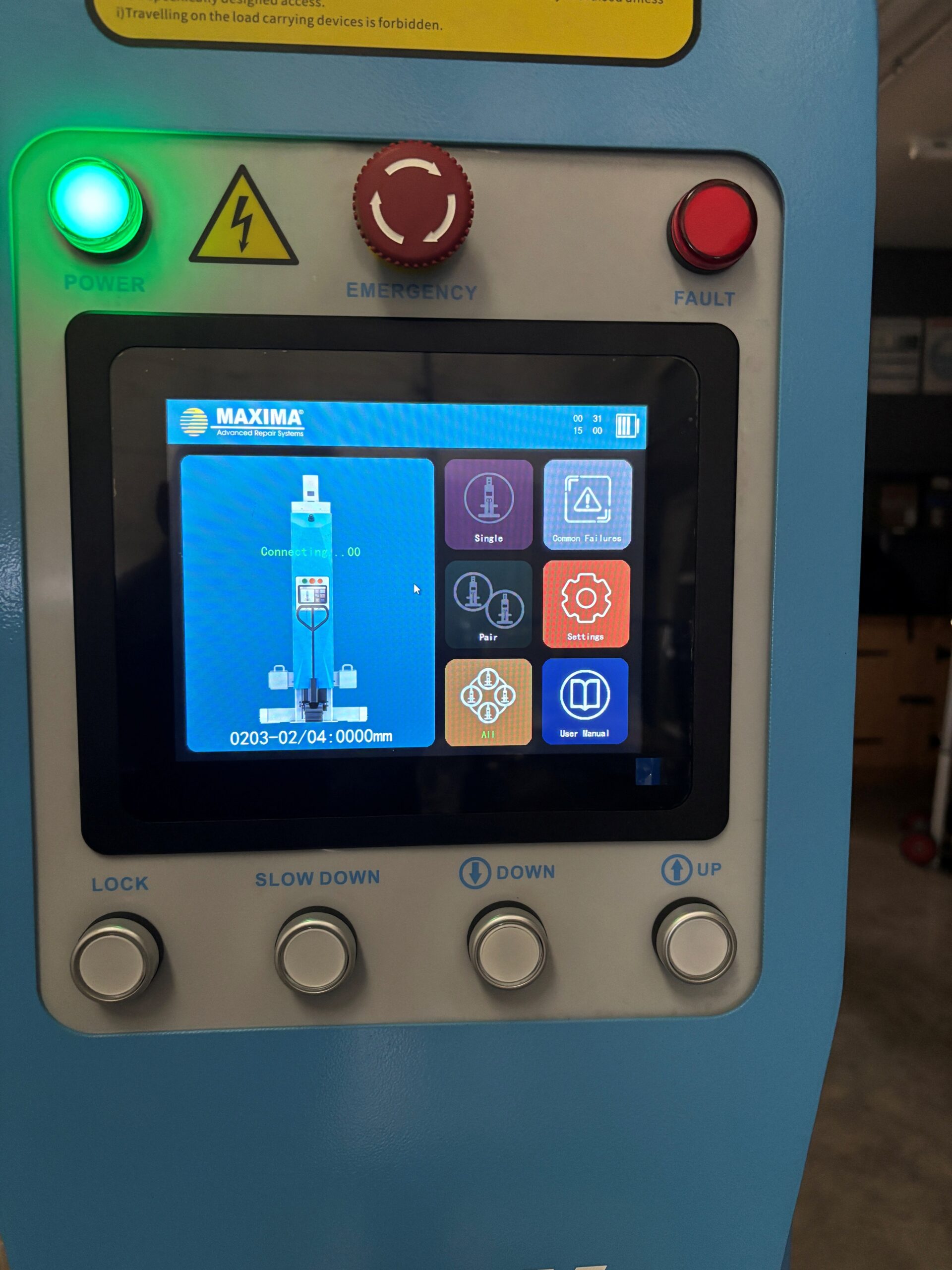

Each column is assembled with control box, Each column can control the complete set
Lower power load ensures lift lowers down even with low battery
Higher Cost Performance
Long service lift with lower maintenance cost
Lifts are easily moveable around site or to other sites
Capacity per column 7500 Kg

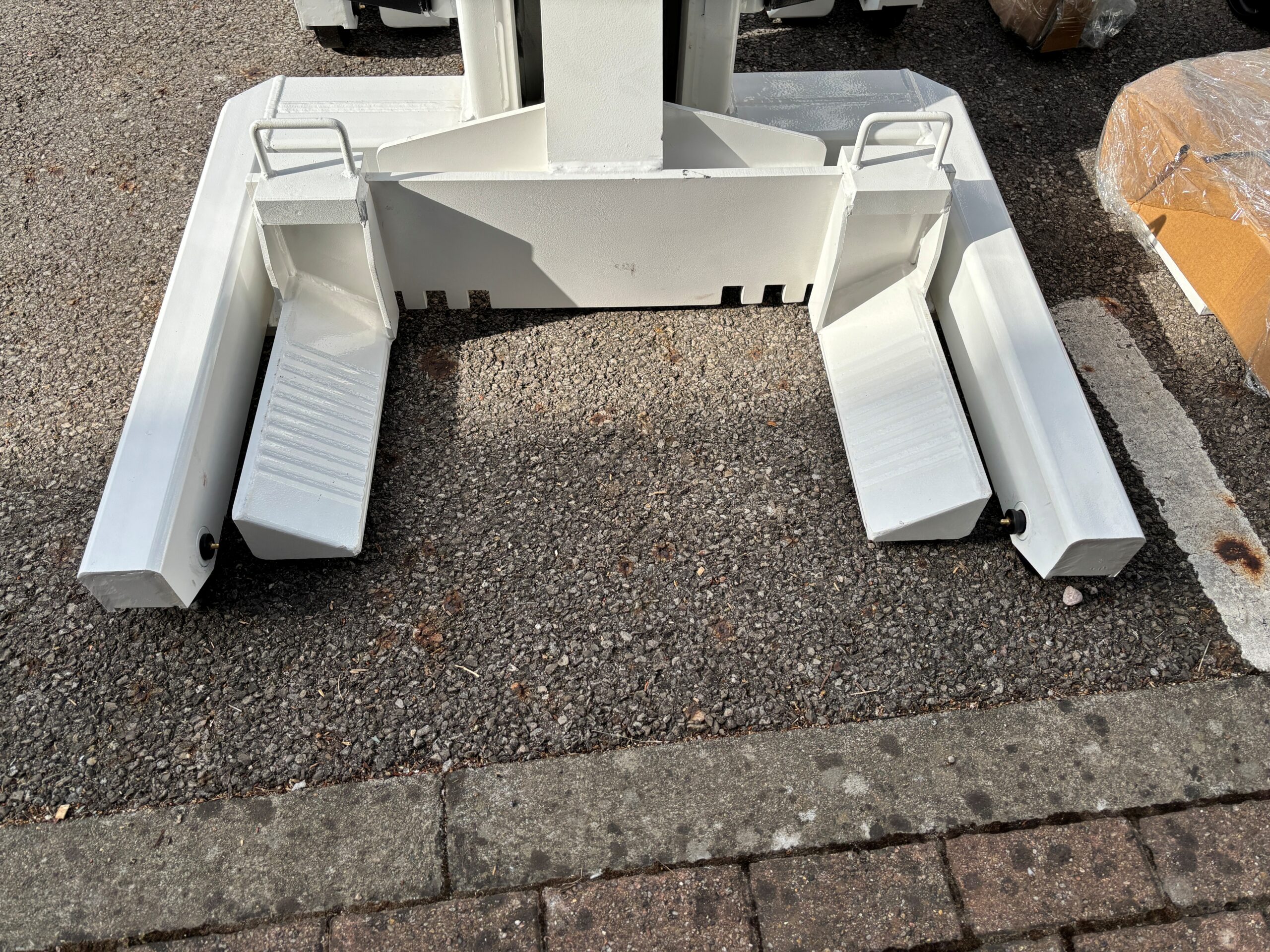

Adjustable fork arm 240 mm – 600mm accommodate wheel sizes 500 mm- 1120 mm
Max lifting height 1850 mm from floor 1700 mm
Lifting time 90 seconds
Motor power 3 Kw per column
Battery supply 24 V DC
Charger Supply 230 V
Weight of column 710 kg
Column dimensions 2300 mm, 1100 mm W, 1300 mm L
Training and Certification Given
https://youtube.com/shorts/KDh5gYHX_7M
T&C’s Columns may be collected at the purchaser expense. Where delivery is arranged by Trojan, the purchaser must provide suitable assistance for unloading, including access to a fork lift.
*The 2 Year warranty is conditional upon a current maintenance agreement being held with us. The Warranty covers defects in materials and workmanship for a period of 24 months from the date of delivery. The warranty excludes misuse, abuse, normal wear and tear and battery depletion. All prices exclude VAT, subject to stocks and manufactures price ruling. Our standard terms and conditions apply. Pictures shown for illustrative purposes only. The prices may change yearly due to price increases by manufacturers / suppliers.
