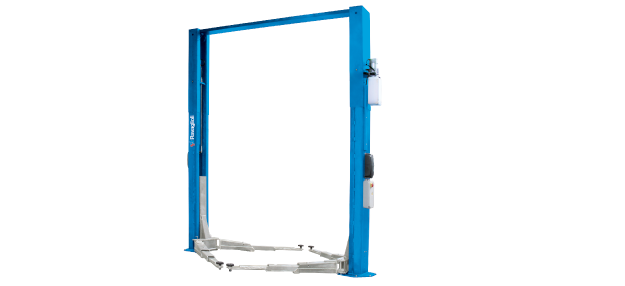

Ravaglioli Two Post Lift KPH370.45LIK Electro Hydraulic Two Post Lift.
Comes with four long three stage arms. Mechanical safety latch with automatic engagement ensuring maximum safety. Carriages are levelled by the wire ropes / cables. Automatic arm locking during lifting and lowering with self locking conical design. 3 phase 415 volt.
Capacity 4500 Kg
Maximum lifting height 2006 mm
Height to overhead gantry 4005 mm
Minimum lift pad height 100 mm
Maximum lift pad height 140 mm
Post height 4062 mm
Drive through width 2400 mm
Minimum front arm length 722 mm
Maximum front arm length 1436 mm
Minimum rear arm length 722 mm
Maximum rear arm length 1436 mm
Width overall 3406 mm
Power supply required 3 phase 415 volt.
