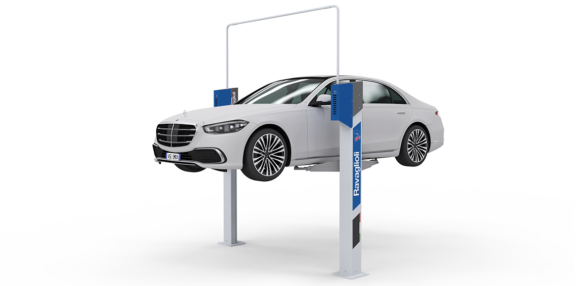

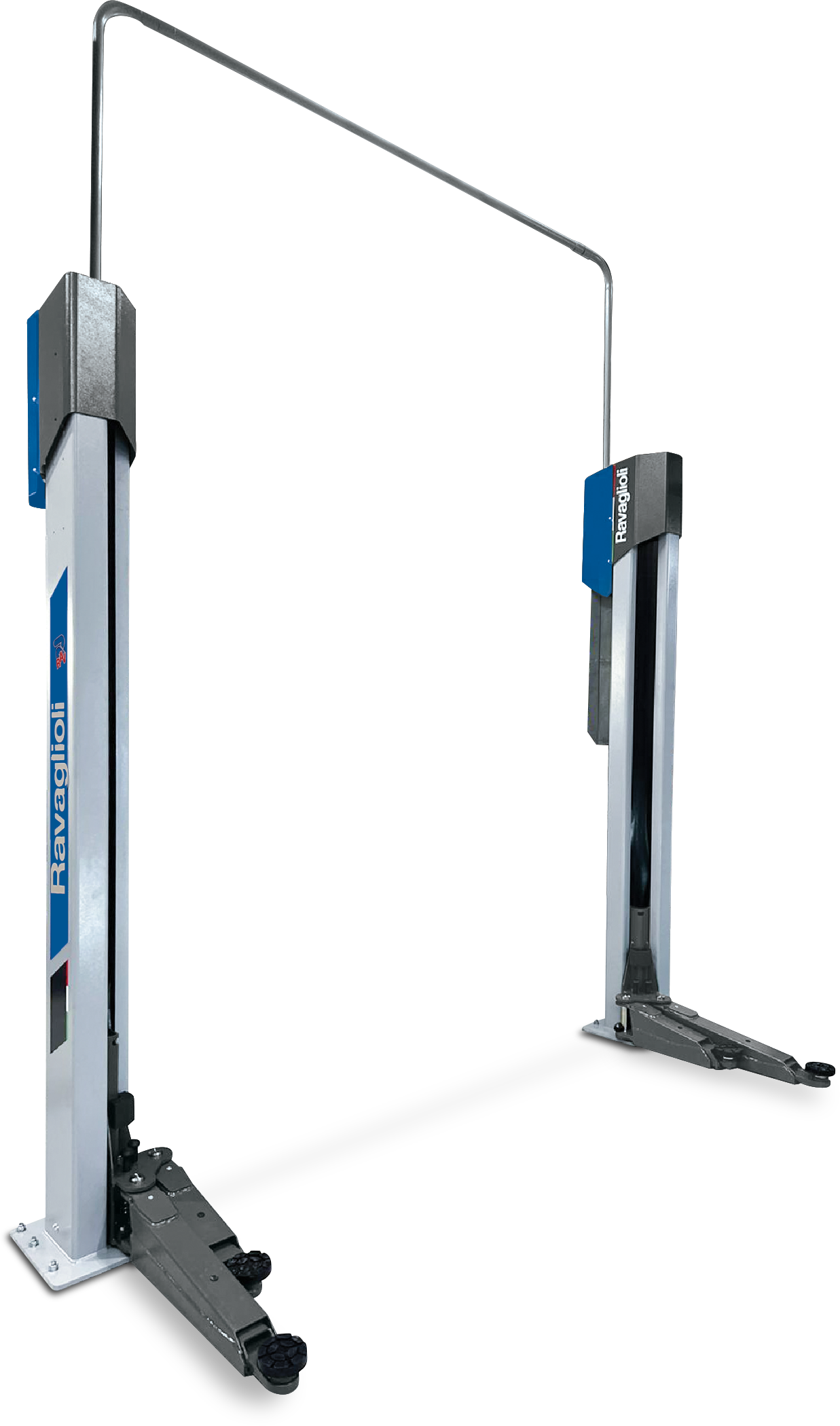

Ravaglioli Two Post Lift KPX35 3500 Kg Electro Mechanical Asymmetric Two Post Lift.
Short 3-stage arms and long 2-stage arms with quick fit telescopic rubber pad. The geometry of the arms has been designed to lift anything from city cars to medium wheel base vans. Electronic synchronization. Equipped with an acoustic anti toe trap system. Free from mechanical foot guards.
Capacity 3500 Kg
Maximum lifting height 2020 mm
Lifting time 42 S
Minimum lift pad height 100 mm
Maximum lift pad height 150 mm
Post height 2920 mm
Drive through width 2372 -2472 mm
Minimum ceiling height 4150 mm
Height of overhead cable conduit 4052 mm
Minimum front arm length 564 mm
Maximum front arm length 1160 mm
Minimum rear arm length 922 mm
Maximum rear arm length 1460 mm
Motor size 2 x 2.6kW
Width 3250 -3350 mm
Power supply required 3 phase 400 v 50 Hz
Various options are available for this lift such as installation, increasing the overhead cable conduit height, lifts pad adaptors
For a price or more information please phone 01454 41 44 44 or email sales@trojanges.co.uk
