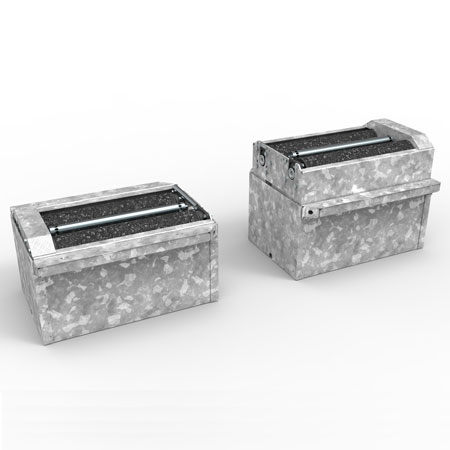

BM18200 ROLLER BRAKE TESTER in-ground brake tester for vehicles with axle load up to 20000 kg with integrated load simulation.

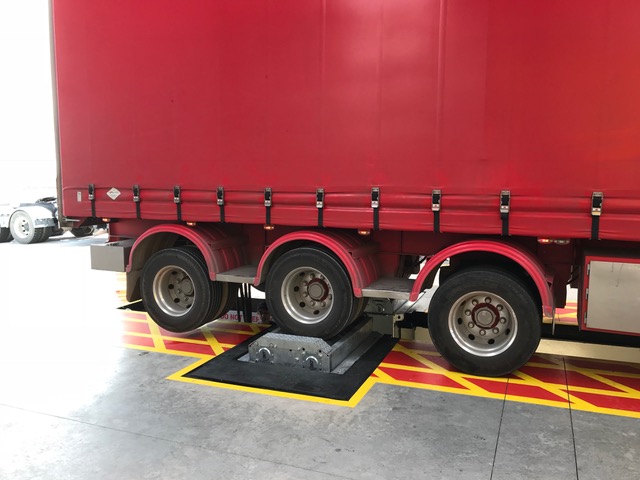

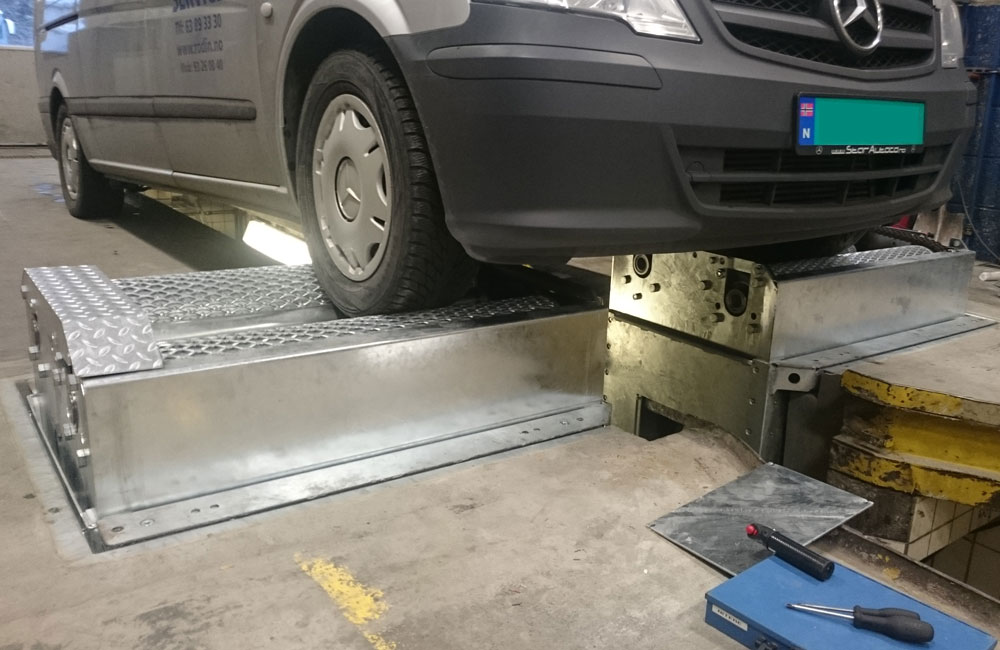

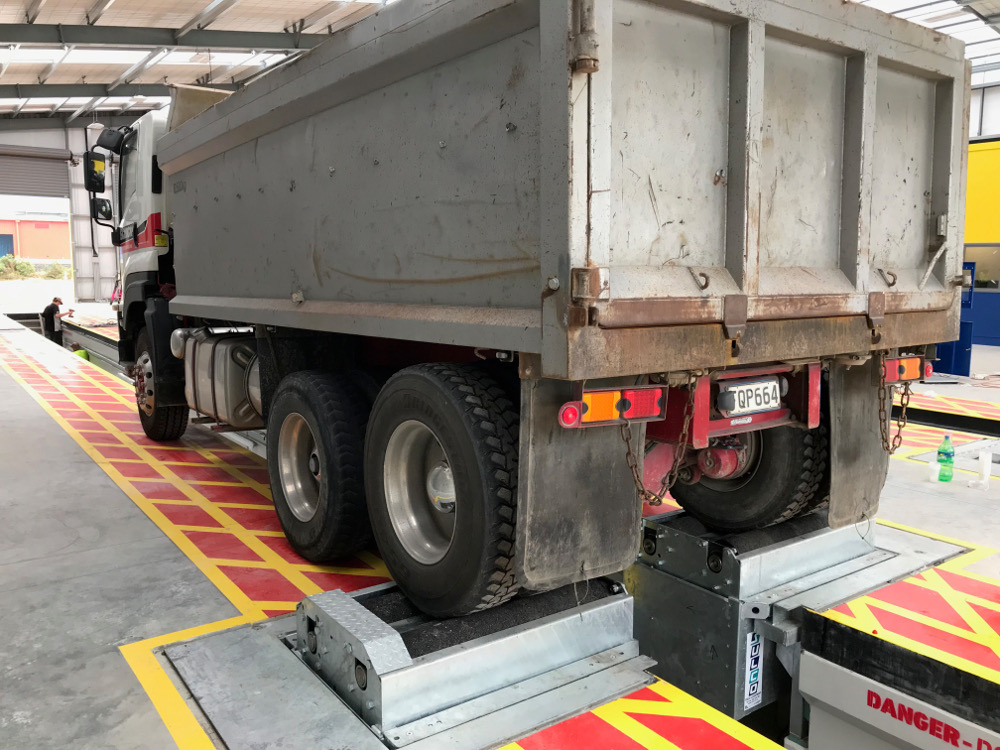

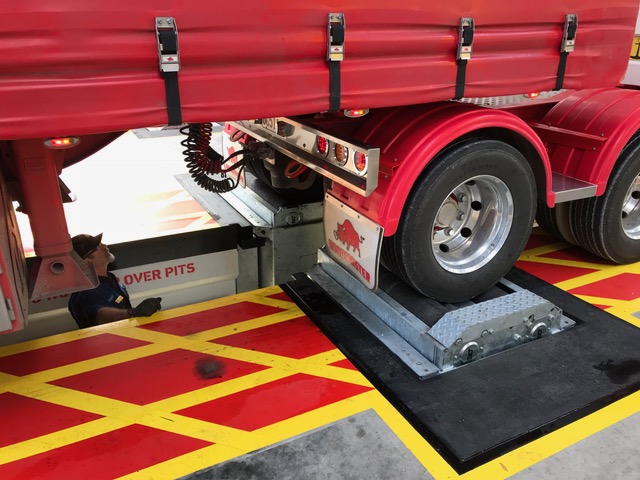

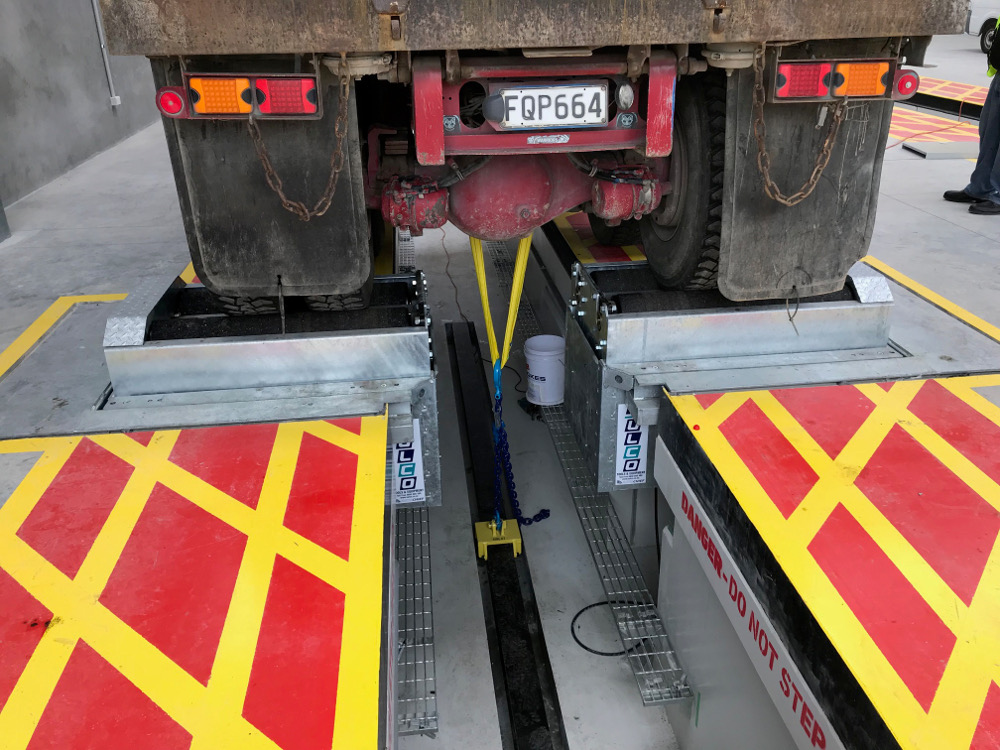

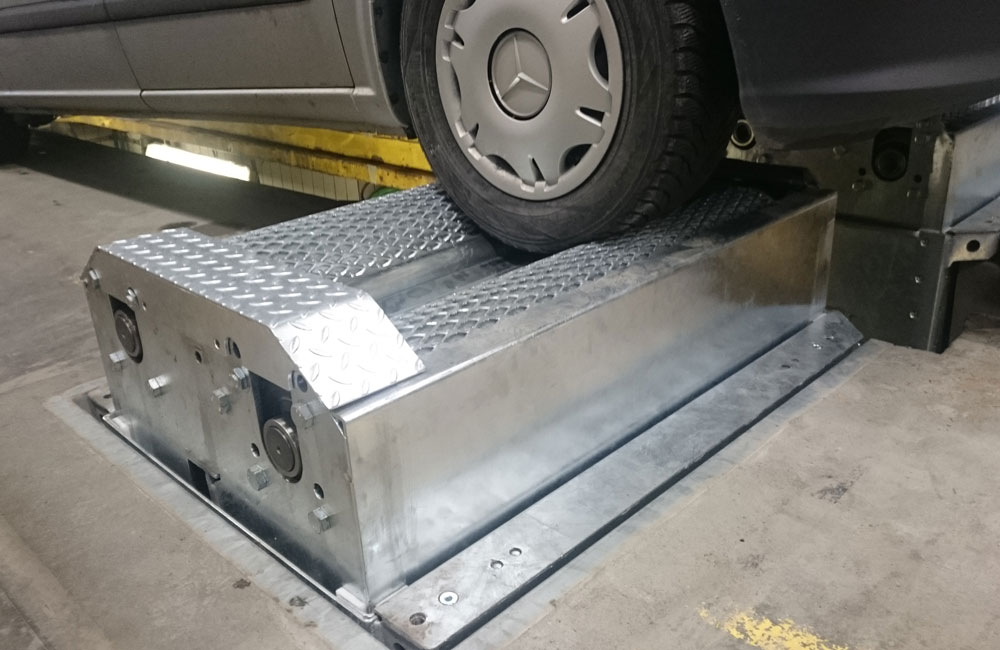

The BM18200 roller brake tester has a unique hydraulic load simulation system allowing the operator to raise the roller bed out of the ground.
This brake tester features a large range of options that allows for a customized configuration.
OPTIONS
Load simulation using hydraulic cylinders (without use of slings).
Each roller bed is lifted on 4 hydraulic cylinders and is controlled by software that has built-in safety features protecting the vehicle and operator during the brake test.
Robust and long lasting:
All steel is of highest quality and hot galvanized.
Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
Easy to use with BM software:
Integrated guide.
Advanced graphics printout.
Diagnostic printout with or without connection to PC/Notebook.
Calculation of test results according to the requirements of many national authorities.
BM FlexCheck software:
Advanced data collection, storing and presentation of test results.
Data capture from a complete inspection lane.
PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.
Infrared remote control with an operating distance of 15-25 metres.
Large and easy-to-read aluminium display with analogue and digital readout of all relevant test data.
Integrated guiding system.
Large analogue dials showing readings of left and right brake forces.
65 mm high bright digital readouts of other measurement results.
Modularly designed so that it can be customized to existing and future demands.
Display units are available in daN, kgf or kN.
Optional cable or radio air/hydraulic pressure system.
