Special Buy Price Starting from £36,995.00 + VAT depending on options

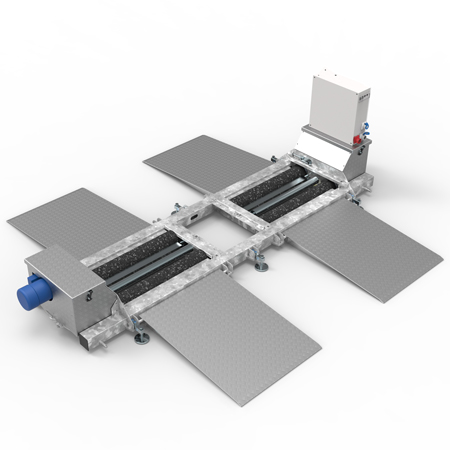

BM20200 is a mobile roller brake tester, MRBT, for test of all vehicles up to a maximum axle load of 20,000 kg. As standard the BM20200 can be powered by only 3 x 400 VAC + N + G at 25 Amps, which in practice equals a 25 KVA generator. The BM20200 is approved by several international authorities, complies with the ISO standard, and holds a NATO number.
The BM20200 MRBT is equipped with the same electronics and software as the BM in-ground RBT’s BM12200, BM14200 and BM17200 and therefore the BM20200 offers the same high test standard and data processing as these inground models.
The BM20200 can optionally be supplied with a wide range of the following features which allows for a customisation, that meets the exact customer requirements.
• Infrared remote control system.
• Android/Windows phone or tablet display and remote control (extra)
• Radio air pressure system (RTS).
• Diagnostic printout with and without link to PC with BM FlexCheck software.
• Automatic axle weighing and vehicle total weight.
• Tachograph calibration on BM brake tester (11 kW gear motors 2.0 km/h).
• Test of 4×4, 4×6 and 6×8 drive vehicles.
• Test vehicles with a high variation of wheel bases up to 4000 mm.
• Conventional axle load simulation.
• Can be placed directly on the floor indoor or outdoor without need of civil work.
Unique Features
The BM20200 has the following unique features, compared to other mobile roller brake testers…
Extremely low clearance
- The roller set height is only 160 mm, which ensures against bottom out when passing with very low vehicles such as coaches and cars.
Low floor space requirement
- Due to the low height of the rollerset, the length of the ramps are only 1.25 meter on each side i.e. a total setup length of only 3.5 meter.
Insensitive to testing area surface
- The BM20200 design is simple with strong and flexible mechanical solutions. The benefit is that there are no particular requirements to the testing area surface. The BM20200 can be placed on asphalt or concrete floor, but also on uneven gravel ground, sand and dirt.
Axle load simulation
- The BM20200 can optionally be supplied with an Axle Load Simulation system, which can simulate up to 8 ton. The system can be supplied with a compressed air powered foot pump or an integrated electrical power unit.
Display on trolley
- The test display can be delivered on a trolley with a robust network cable of up to 100 meters. Hereby the display can be placed in a convenient long distance from the roller bed and hereby be monitored even when the last axle of a vehicle combination is tested.
Transportation
Flexible means of transportation since the BM20200 can be completely folded up and minimised sizewise means customised transport options can be offered.
BM Trailer Solution
BM has developed a unique transport frame system, which can be mounted onto a standard trailer with tilt function. The transport system is modularly designed and covers means of transportation of generator, BM20200 brake tester, BM53000 wheel play detector and BM901 side slip meter including electrical winches and battery.
Container Solution
BM can supply a 20ft container solution with purpose built rails for load/unload and special storage design inside the container.
The transport system has a number of important benefits including ensuring equal distribution of weight onto the full area of the trailer bed, fixation of equipment during transport and correct angle for avoiding bottom out when loading and unloading the equipment.
Technical Specifications:
- Roller bed (1000 mm rollers) L x W x H 3465 x 4240 x 505 mm
- Roller bed (1250 mm rollers) L x W x H 3465 x 4740 x 505 mm
- Roller bed (1600 mm rollers) L x W x H 3465 x 5440 x 505 mm
- Roller diameter 150 mm
- Roller length 1000/1250/1600 mm
- Friction coefficient of roller from factory, dry/wet, Min. 0.7/0.6
- Wheel span (can be customised on split bed model) 800 to 2800/3300/4000 mm
- Distance between roller centers 430 mm (530 mm on agro)
- Maximum test axle weight 16000 / 20000 kg
- Gear motor size 2.2/4.8/11/15 kW
- Max. brake force measurement 4000/6000 daN
- Test speed 0.5/1.0/2.0/3.0 km/h
- Display L x W x H 930 x 820 x 100 mm
- Control box L x W x H 600 x 600 x 210 mm
- Display brake force scale 0 – 800 daN & 0 – 4000 daN
- Brake force measuring accuracy 0-100 daN: ± 2 daN & -> 100 daN: ± 2% FS
- Pedal force measurement accuracy 0 – 100 daN: ± 1 daN
- Power and fuses 3 x 400 Vac + N + PE
- Min. 16/25/50/80 Amp 3 x 230 Vac + PE
- Min. 20/50/80/125 Amp
Price displayed is for supply & deliver costs only please enquire about installation costs
NB Excludes civil works, electrical works, removal / relocation of old or existing equipment.
