BM7010 & BM7110 ROLLER BRAKE TESTER Strong in-ground brake tester for light vehicles with axle load up to 3500 kg.
Product description

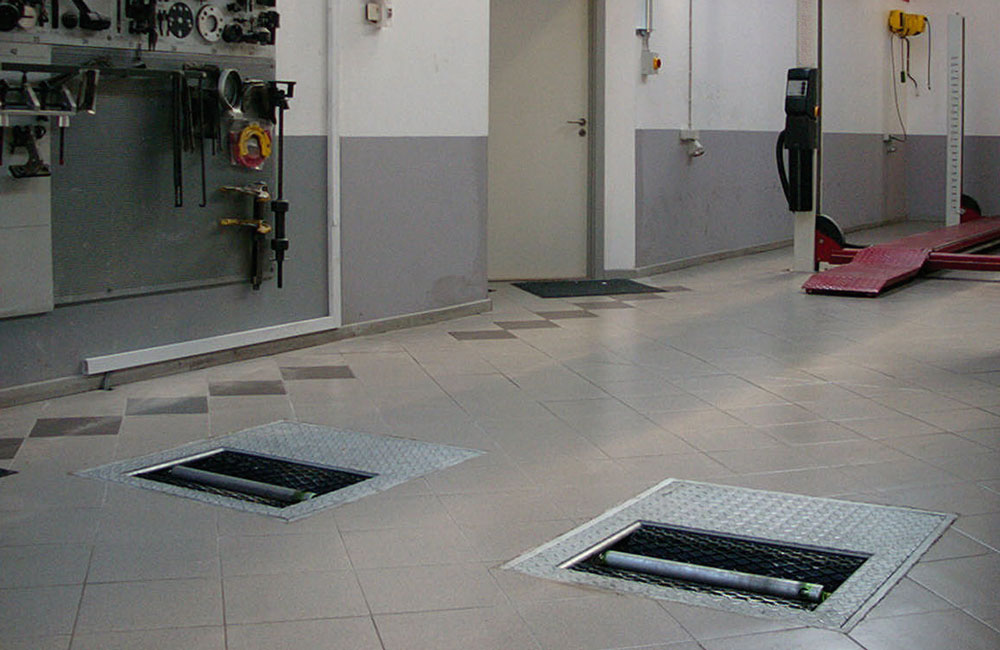

The design of the BM7010 & BM7110 roller brake tester is unique as it allows for split bed installation over an inspection pit.
This brake tester features a large range of options that allows for a customized configuration.
OPTIONS
Robust and long lasting:
All steel is of highest quality and hot galvanized.

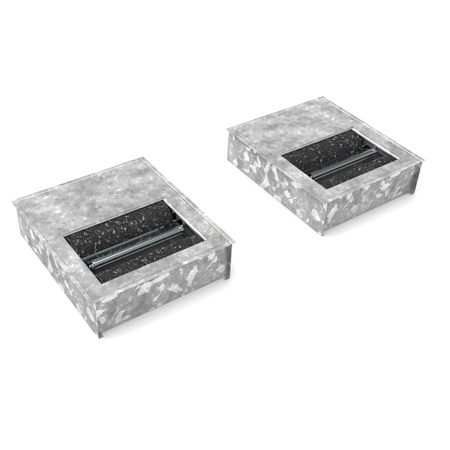

Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
Easy to use with BM software:
Integrated guide.
Advanced graphics printout.
Diagnostic printout with or without connection to PC/Notebook.
Calculation of test results according to the requirements of many national authorities.
BM FlexCheck software:
Advanced data collection, storing and presentation of test results.
Data capture from a complete inspection lane.

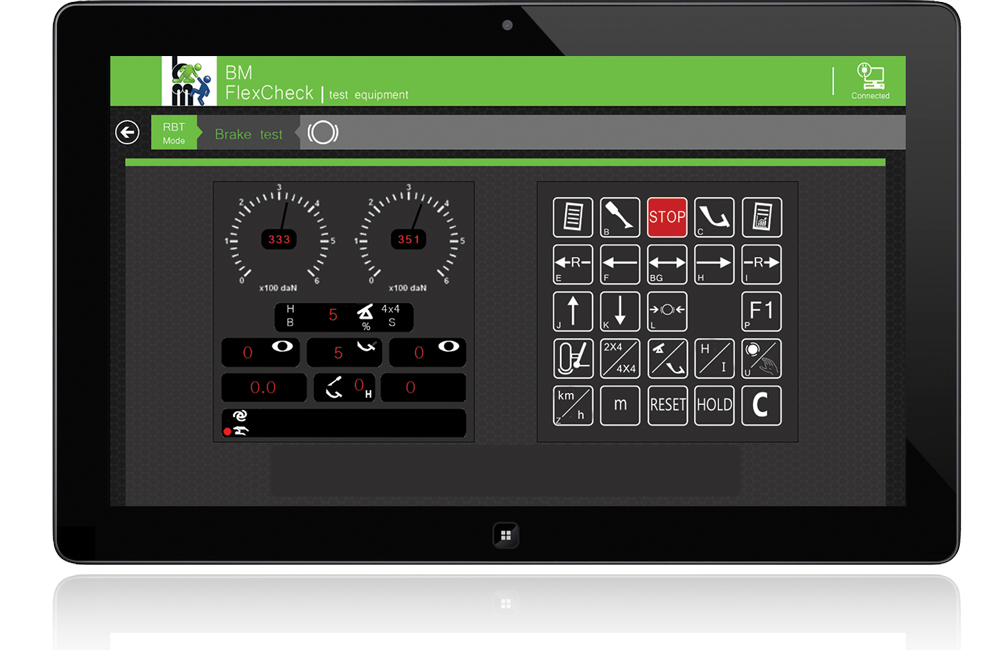

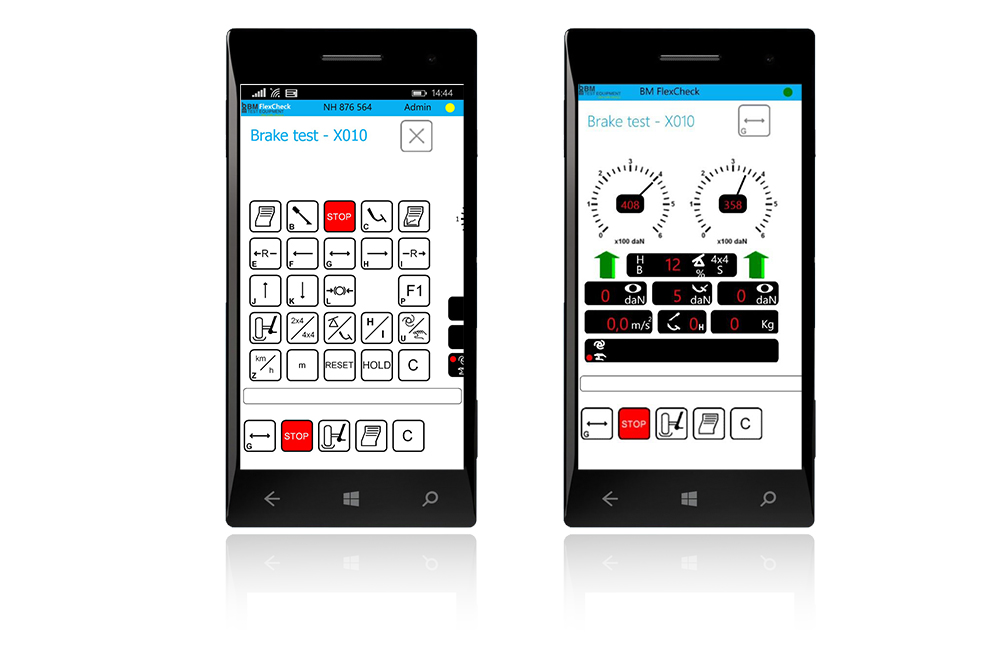

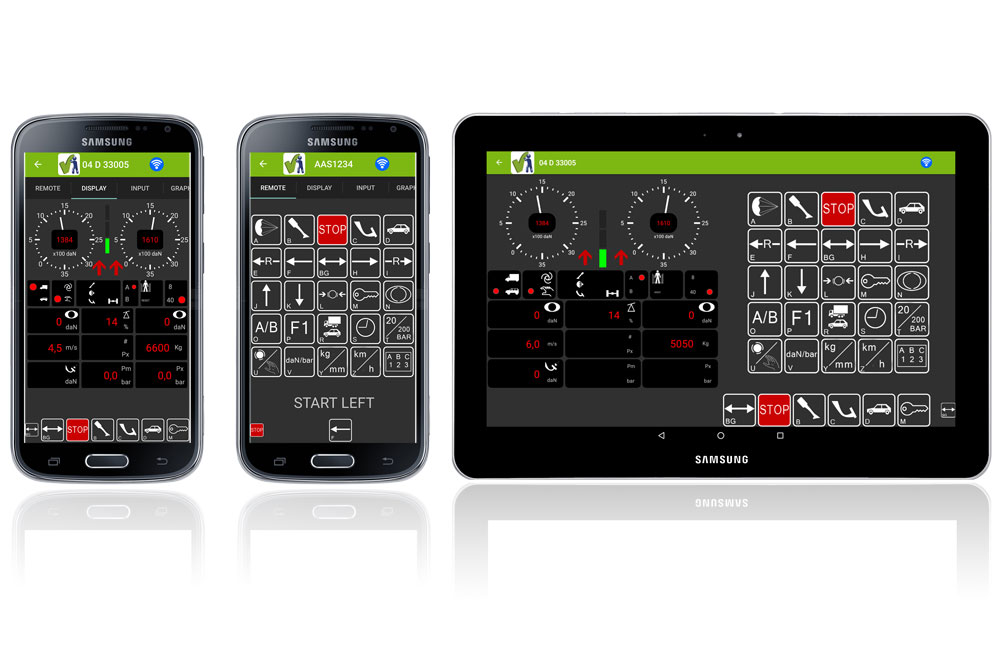

PDA/smartphone/tablet solution that allows the operator to control and monitor the test results directly on a handheld unit.
Infrared remote control with an operating distance of 15-25 metres.
Cable remote control with a maximum operating distance of 30 metres.

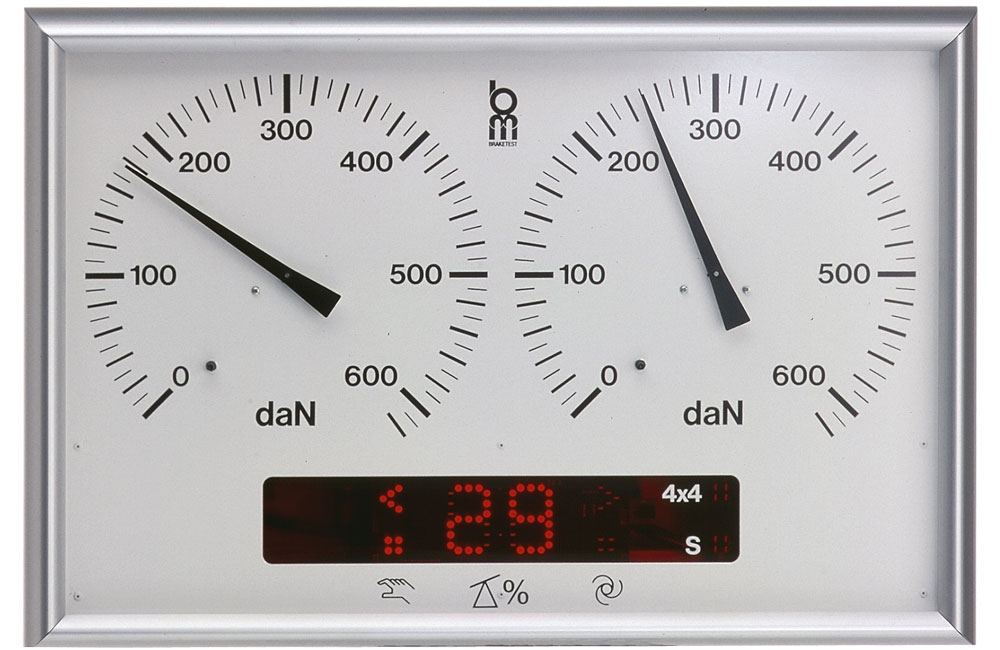

Large and easy-to-read aluminium display with analogue and digital readout of all relevant test data.
Two large dials showing analogue readings of left and right brake forces.
50 mm high bright digital readout of brake force imbalance in %.
Optional digital readouts of e.g. ovality, pedal force, weight, efficiency, suspension values, speed and distance values.
Display units are available in daN, kgf or kN.
Technical data
ROLLER BED (LXWXH)
910 x 800 x 220 mm
SUBFRAME FOR SPLIT BED INSTALLATION PER SIDE (LXWXH)
965 x 855 x 250 mm
ROLLER LENGTH
600 mm
ROLLER DIAMETER BM7010
175mm
ROLLER DIAMETER BM7110
182mm
FRICTION COEFFICIENT OF ROLLER FROM FACTORY DRY/WET
Min. 0.8/0.7
WHEEL SPAN
880 to 2080 mm
DISTANCE BETWEEN ROLLER CENTRES
350 mm
MAXIMUM TEST AXLE WEIGHT
3500 kg
MAXIMUM DRIVE OVER AXLE WEIGHT
4000 kg
GEAR MOTOR SIZE
3.8 kW
MAX. BRAKE FORCE MEASUREMENT
750 daN
TEST SPEED
4.5 km/h
DISPLAY (LXWXH)
735 x 500 x 140 mm
DISPLAY BRAKE FORCE SCALE
0 – 620 daN
BRAKE FORCE MEASURING ACCURACY
0 – 100 daN: +/- 1 daN
> 100 daN: +/- 1% FS
PEDAL FORCE MEASURING ACCURACY
0 – 100 daN: +/-1 daN
POWER AND FUSES
3 x 400 Vac + N + PE, Min. 20 Amp
3 x 230 Vac + PE, Min. 35 Amp
