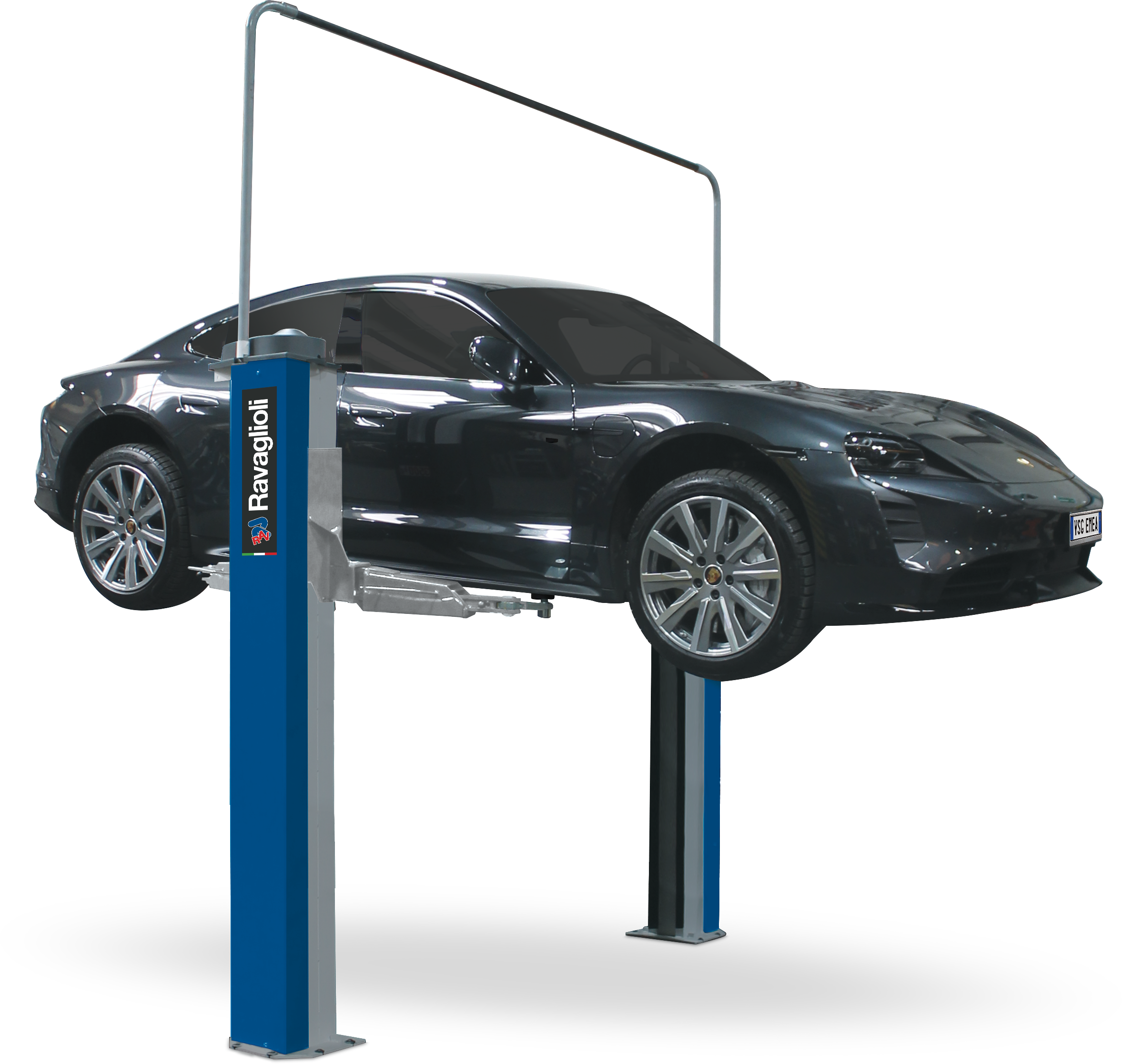

Ravaglioli Two Post Lift KPX357 EV 3500 Kg The universal lift for the future EVolution.

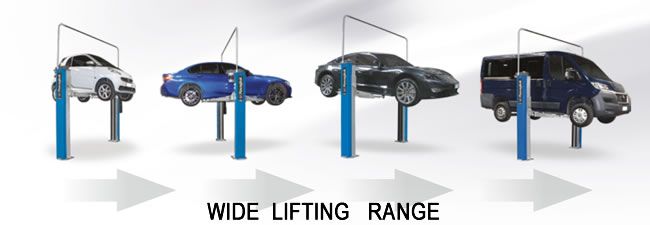

The electromechanical 2-post lift KPX357EV is the ideal solution for whoever wants to set up a universal work bay. The innovative low-profile arms with rotating terminal offer incredibly flexible use, making the lift suitable for lifting all types of vehicles – from the standard city cars to sports cars – including the most modern electric vehicles – up to the VW T6 with long wheel base.
Perfect for electrical cars

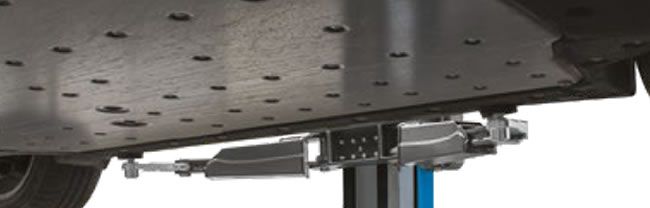

The movement flexibility of the arms provides direct access to the battery pack for its removal operations. The automatic arm locking system guarantees utmost safety and stability for the operator. Possibility to use the arm either straight or tilted up to 90°
Ideal for sports cars with low profile
The rotating terminal makes it possible to easily reach the pick-up points by moving the arm body away from the chassis; in this way, any contact between vehicle and the arm can be avoided
The movement of the carriage is ensured by a rolled steel screw and a bronze nut with automatic lubrication; high strength elements that ensure utmost safety and lifetime.
Technical
Capacity 3500 Kg
Distance in-between posts 2650 mm
Height of overhead cable conduit 3876 mm
Minimum ceiling height 3900 mm
3 stage telescopic front arms
3 stage telescopic rear arms
Possibility to use the arm either straight or tilted up to 90°
Minimum length of front and rear arms 792 mm
Maximum length of front and rear arms 1200 mm
Motor 2 x 2,6 Kw 3 phase
Various optional high lift pads are available also pads for TESLA
For a price or more information please phone 01454 41 44 44 or email sales@trojanges.co.uk
