Texa Axone Voice Car Diagnostic
Comes with Axone Voice
IDC5 Premium Car Software
IDC5 Supercar Software
TXT Multi hub
Axone Voice Handle
12 Months Car Texpack Software Updates
12 Months Car TEX@Info Technical Support

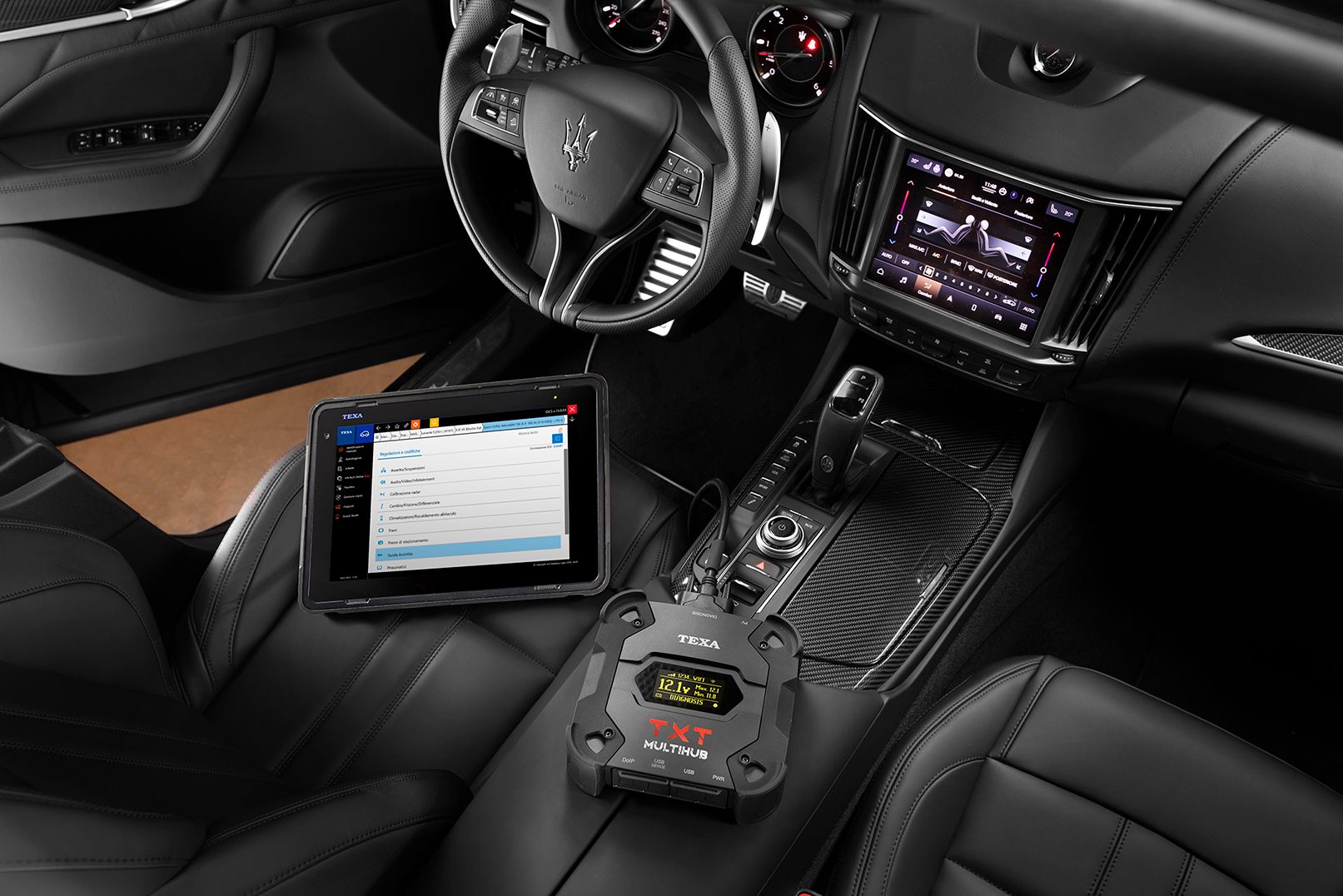

AXONE VOICE is the first hands-free solution in the world of multi-brand and multi-environment diagnosis.
It is a tool that adds the benefits of fixed workstations (power of calculation, size of the screen and possibility to be powered continuously) to the ones of portable diagnostic devices and increases their potential thanks to the innovative ways of interaction that you can get the most out of for your work.
AXONE VOICE is the first display unit with voice control*, a function developed in collaboration with Microsoft® designed to support you throughout the different phases of your work.
It is also the first tool that uses face recognition to safely identify who is using it, unlocking a series of exclusive functions to access the protected diagnostic procedures provided by the manufacturer.
*Voice control function is available only on selected languages. It requires an Internet connection and an active TEXPACK subscription
Software IDC5
The brain in TEXA’s diagnostics
The IDC5 software is complete, practical, intuitive and extremely quick to access communication with the vehicles.
It guides you through all the diagnostic phases, from the error identification to its solution.
Always in a practical, safe, professional way.
TGS3s Global System Scan
Automatic scan of all the control units installed in a vehicle that can be diagnosed(1), fast in accessing the diagnostics and identifying the control units automatically. On completion of the scan, TGS3s immediately displays any errors, along with the relevant codes and descriptions, and allows you to read and clear them with a single click. You can also launch a self-diagnostic test on the selected system directly from the error detection screen.
Rec&Play: diagnostic session recording
The Rec&Play function allows recording the parameters and errors that occur during a test drive. The data can be easily read and analysed at a later time and printed as a report of the test carried out.
Technical Specifications
DISPLAY AND RESOLUTION
Gorilla® Glass 13.3” screen
High resolution: 2560×1600 (up to 400 cd/m² ) 16.7 M of eDP colours
Multi-touch support up to 10 points simultaneously
OPERATING SYSTEM
Windows 10 Enterprise
PROCESSOR
(Generation – Model and type)
Intel® i5 8M cache, TGL UP3 i5-1145G7E “Tiger Lake”
1.5-4.1 Ghz Turbo Boost – Quad Core 15W
GRAPHICS
Intel® Iris® Xe Graphics
COOLING
Fanless
RAM storage
16 GB LPDDR4 dual channel 3200 Mhz
MEMORY CAPACITY
512 GB SSD 2280 PCIe Gen3.0 x 4 lane NVMe
CERTIFICATIONS
EC brand / NEMKO RED / electrical safety SUD TUV brand / RoHS
regulation compliant
US electrical safety cTUV NRTL – USA + Canada
FCC / IC certification – USA + Canada
Proposition 65 compliance – California
MIL-STD 810G (TRANSIT DROP TEST)
STRUCTURE
In magnesium
BATTERY
Li-ion battery – 7.2 Volt 90 W/h (12500 mAh)
(10 hours of operation in standard use conditions)
BUILT-IN INTERFACE
GNSS
SENSORS
Accelerometer; eCompass; Gyroscope; Barometer; Altimeter;
Ambient light sensor, magnetic
CONNECTIVITY
Dual band 802.11ac Wi-Fi, Bluetooth® 5.1 Intel AC9260
EXPANDABILITY
4x 3.0 USB ports (max output current 2000 mA)
CAMERAS
Rear: 8 MP AF with FLASH – Front: 8 MP
SIZES AND WEIGHT
360 x 250 x 34 mm / 2.3 Kg
Please use the Texa website https://www.texa.co.uk/diagnostic-coverage/ to ensure the unit you are ordering is suitable for your application prior to ordering as we cannot accept returns.
