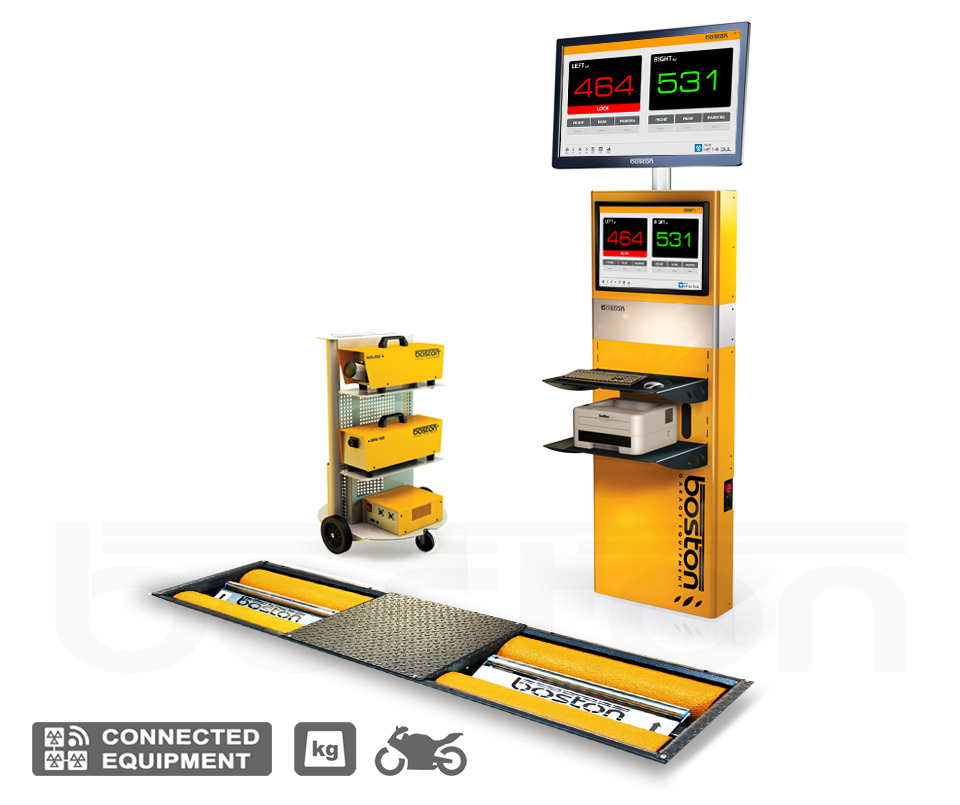

D412 3.5T MOT Brake Tester (Class 4)
Approved for use by the DVSA as MOT Connected Equipment, our D412 brake tester delivers fast, efficient testing.
In standard configuration, the D412 can be used as a standalone MOT brake tester for use in traditional MOT bays. It can also be upgraded with a vehicle weighing system for motorcycle testing and DVSA approved Automated Test Lanes. Using our latest SW900 software, every test is stored automatically should it ever need recalling, and remote ‘over the internet’ assistance is built-in allowing our engineers to connect immediately and diagnose your system remotely!
The chassis is fully galvanised and then painted with a durable, hard-wearing industrial finish. Rollers are supported with a five-year guarantee and are manufactured with longevity in mind. The D412 easily deals with the extreme demands of modern day brake testing and busy MOT Stations. It has a load capacity of 3,500kg and the whole test (non-ATL) can be operated wirelessly using our radio frequency ruggedised RFC-95 remote control.
Approved for UK MOT Classes 1,2,3 and 4, this model benefits from four-wheel drive (4WD) brake testing as standard and automatic efficiency calculation for simple pass / fail test results.

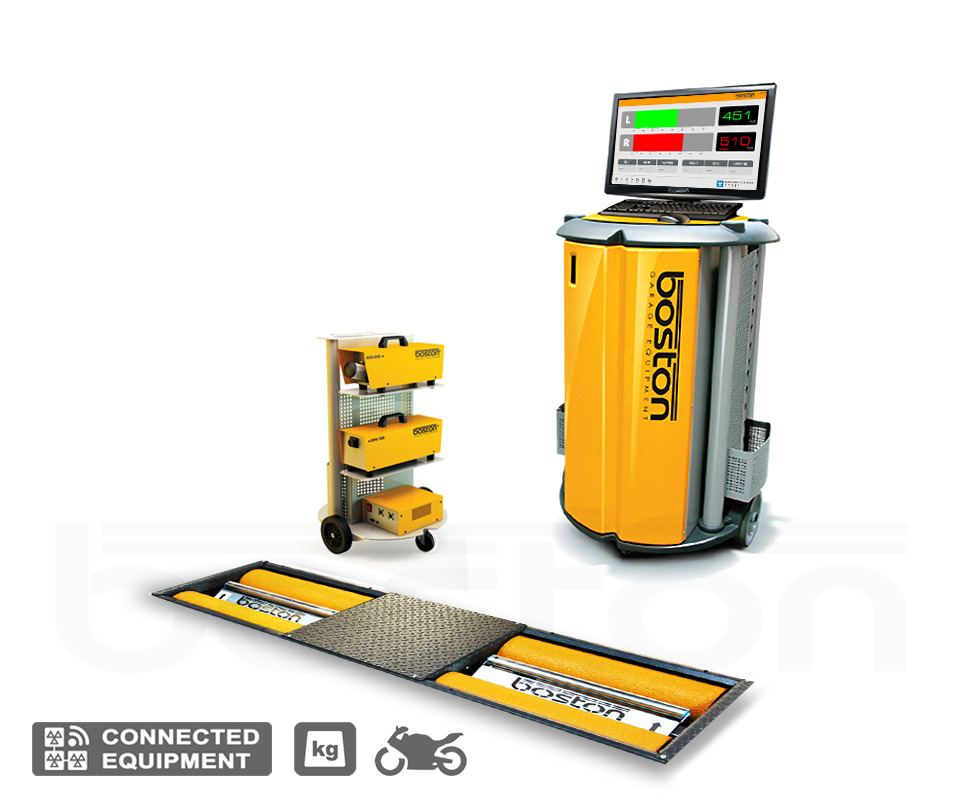

Optional control system layouts are available to suit individual premises (GCP3 and GCP4) and our emissions packages can easily be added at any time to provide a complete combined brake tester and emissions testing system.
Simply put, you won’t find a better brake tester on the market.
Features & Benefits
- Approved as Connected MOT Equipment
- Galvanised and painted rollers
- Roller surface guaranteed for 5 years
- Installation cartridges galvanised and painted
- Single bed symmetrical chassis
- Very latest DVSA ATL software
- Remote on-line support (OSS)
- Every official test saved automatically
- Customer database with testing statistics
- Emissions software included as standard
- 4WD testing as standard
- High quality RFC-95 remote control (50+ range)
- 22″ flat panel LED display (touch screen optional)
- 40″+ secondary display (optional)
- Motorcycle testing compatible (optional)
- All software and electronics made in UK
Power (Full Load): 3ph 400V / 50 Hz / 32A
Motors – 3ph: 2 x 3.0 kW
Electronics: USB Interface – PC Controlled
Brake Testing Speed: 2.9 km/h
Roller Bed(s) Weight and Build: 425 kg – Fully Galvanised and Painted
Max. Brake Force (per wheel): 900 kgf
Max. Axle Load: 3500 kg
Roller Width: 700 mm
Roller Centres Dimension: 420 mm
Friction Roller Surface: 0.9 μ dry, > 0.6 wet
Roller Bed Chassis Dimensions: 2340 x 660 x 300 mm (L x W x H)
Display Dimensions: LED Monitor, 22″ standard (larger optional)
Control System: GCP3 / GCP4 Control Station (Windows 7 + SW900 Software)
Communication: USB
Operator Control: Keyboard / RF Remote Control (50m+ range)
Axle Weighing System: Optional (D412W)
